Description

Simple and economical kit composed of the reamer only for opening the lateral window for the sinus lateral approach surgery. Reasonable and Economical due to the mini kit consisting of essential components. More convinient and intuitive use with simple components.
Las Kit Consists Sinus Reamer Dome Drill to create a lateral window. Widder Sinus Reamer Dome Drill to widen the window. Core Drill that can create core bone lid. Sinus Reamer Dome Drill has expectional cutting ability through the combined use of macro and micro blades. Stopper Sytem to prevent excessive and over drilling.
Sinus Reamer Rotary Bur: Thickness of the lateral bone varies both by patient as well as location on the lateral wall. During lateral wall access the underlying membrane has the potential of tearing and depth rings for the kits rotary carbides and diamonds improving procedure safety while decreasing complication potential during lateral wall development.
Core Drill 7.0mm Dia. The “Island” burs, are rotary instruments utilized when it is desired to have an osseous window that can be replaced over the completed lateral window following completion of the sinus augmentation or rotated to become the new sinus floor. The Island burs are provided as a diamond coated cylinder and as a serrated end cylinder in an 7.0 mm diameter. Depth penetration is controlled utilizing the LA stoppers and decrease potential of membrane tearing.

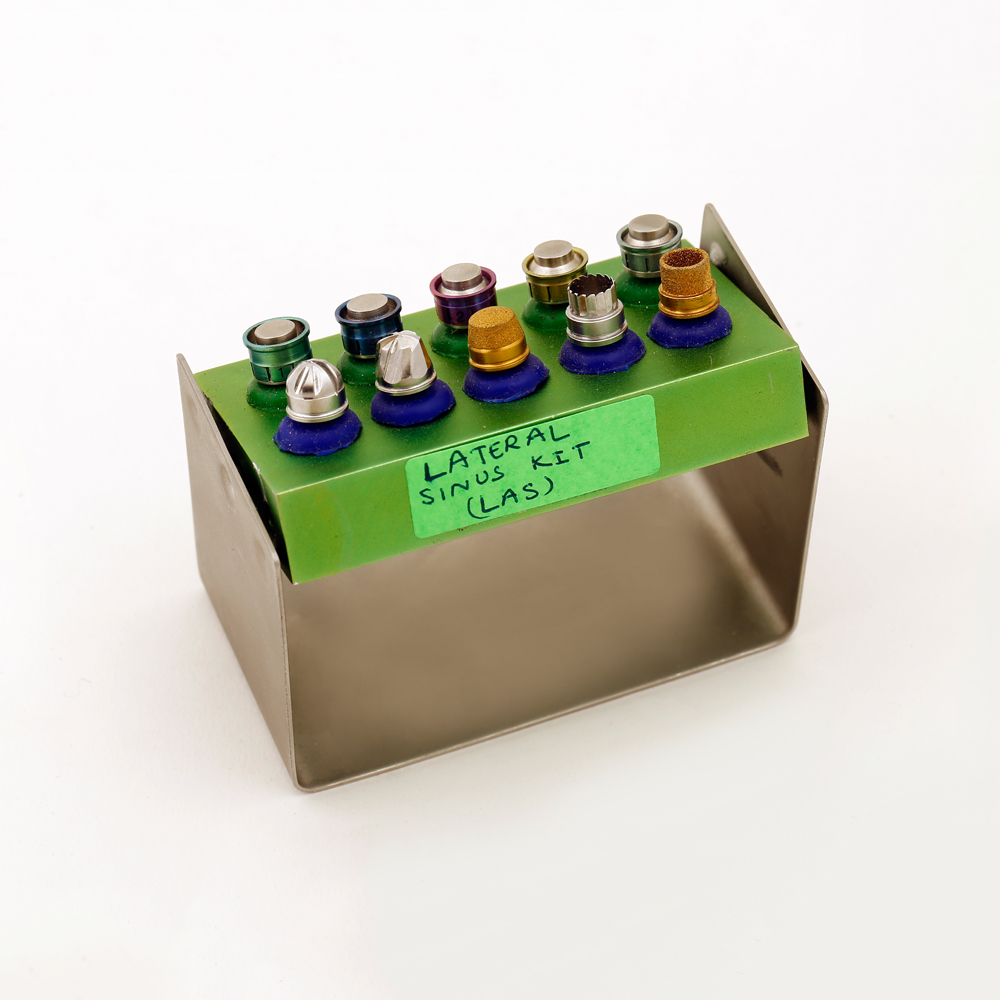

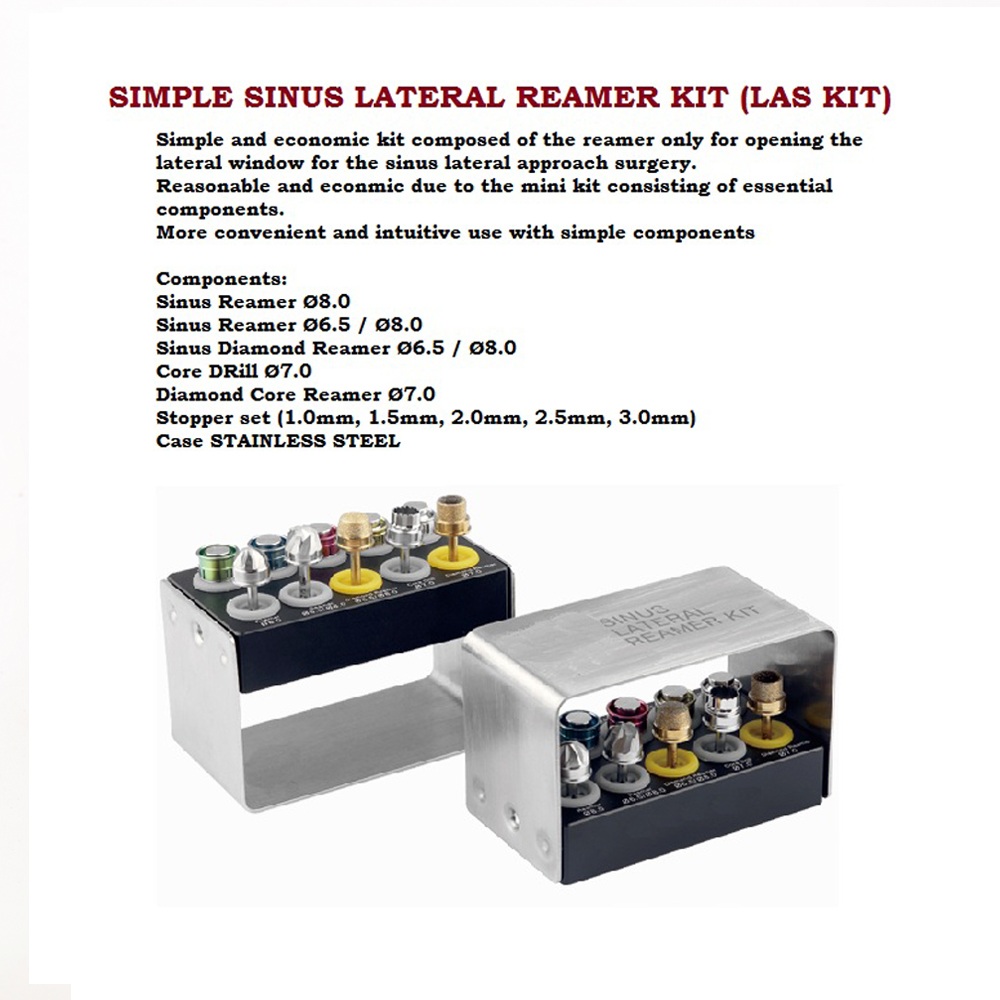

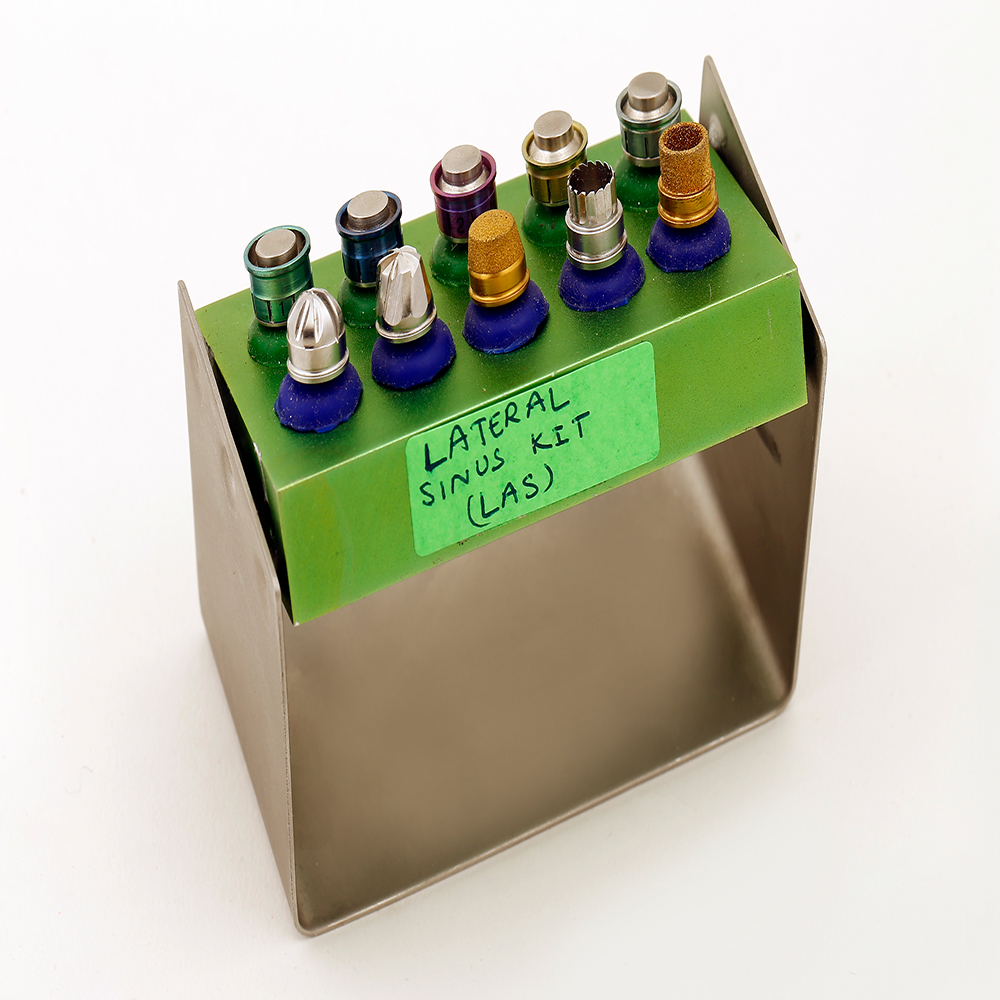

Components:
1) Sinus Reamer 8.0mm Dia.
2) Sinus Reamer 6.5mm/8.0mm Dia.
3) Sinus Diamond Reamer 6.5mm/8.0mm Dia.
4) Core Drill 7.0mm Dia.
5) Diamond Core Reamer 7.0mm Dia.
6) TITANIUM Stopper
Sizes: 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm
7) Drill Box: To manage, Autoclave and store all the components together.

Additional Information
Weight : 0.220 kg
Dimensions : 10 × 5 × 2 cm
